Edge Blending Controllers

Key Features

  • Built in 4K media player
  • Two HDMI capture channels
  • Two or Four HDMI outputs
  • Custom pre-set layouts
  • HDCP compliant
  • Independent colour adjustment for each connected projector
  • Advanced overlapped area colour correction
  • Supports flat, curved or spherical projection surfaces
  • Fanless design
  • Each Output supports resolutions up to 1080p Full HD and 1920×1200
  • Video wall controller function with PiP, zoom, position and so on features
  • Bezel Compensation for all types of displays provides accurate display of the image
  • Supports any degree rotation on each individual output, to enable creation of irregular video walls
  • Controllable via IP or RS232
  • Supports a variety of shaped open windows, such as heart-shaped, diamond, square, clouds and so on • Supports special effects on up to 4 video windows edge

Overview

The G4K DS is the device combining edge blender, video wall controller and 4K media player together in one unit. It is not only able to blend up to four projectors together into one flat seamless display but also able to warp geometries on non-standard surface to form curved or spherical projection surface.

In addition to its ability of edge blending at the output sides, G4K DS is able to capture up to two HDMI video sources and display them onto the projection screen anywhere and any size. Moreover, G4K DS also has an embedded 4K media player which enables G4K DS output 4K video source played locally in addition to two captured HDMI video sources.

G4K DS units can be easily configured via IP connection or RS232 to a Windows based PC running management software. The Windows based software provides a user friendly GUI, greatly simplifying the system configuration. G4K DS units are able to run standalone without the connection to the control PC, once configured.

G4K DS unit can work with LCD, DLP and LED displays as well to form a stand or creative video wall with its ability to rotate the output at any degree.

Product Range

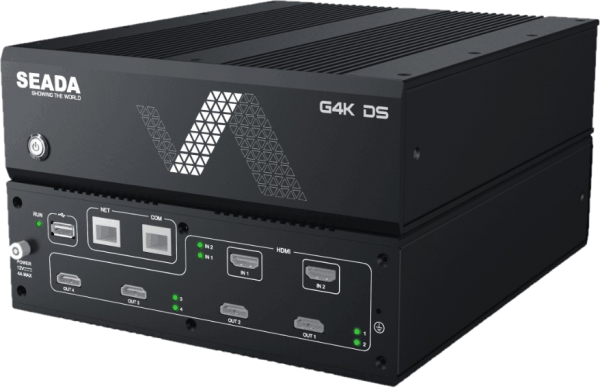

G4K DS Edge Blending Controller

The G4K DS is the device combining edge blending, video wall control and a 4K media player together in one unit.
