SOLARWALL 4K MULTIVIEWERS

4U-cutout 600x400

SW 4K Multiviewers

SEADA’s SolarWall 4K multiviewers family are the latest 4K Multiview Controllers designed to work with 4K screens or projectors with the flexibility of modular design.

Key Features

  • Advanced Crossbar technology
  • Robust FPGA video data process technology
  • No PC vulnerabilities
  • Input signal preview
  • Up to 28-window overlay mode in single screen
  • Customized pre-set layouts
  • On screen display (OSD)
  • Picture in Picture (PiP)
  • Picture over Picture (PoP)
  • Multi output option: DVI-I (Digital & Analog), SDI, HDBaseT, Optical Fibre
  • Multi input option: DVI-D, HDMI, VGA, SDI
  • Low power consumption
  • Fast start up within 5 seconds, Low capture & display latency
  • HDCP support for DVI/HDMI
  • Seamless switching

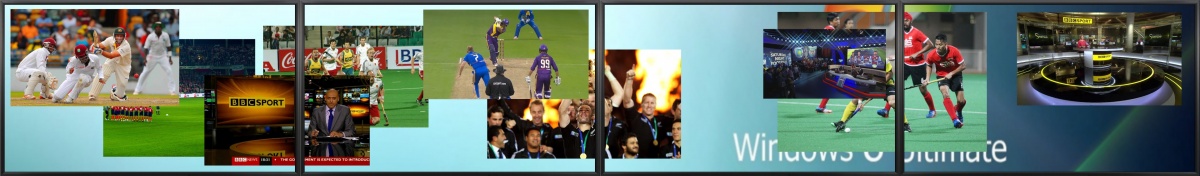

The SolarWall 4K Multiviewers are able to output up to 28 windows simultaneously onto one or across multi 4K screens with complete layout flexibility. The SolarWall 4K Multiviewers are pure hardware based controllers, offering extremely fast start-up times. In addition, the systems benefit from a working environment free of viruses and software conflicts, ensuring 24/7 hassle free operational ability. The images below show how the 4K multiviewer can be used for different layout of 4K screens in a multi video inputs scenario (1×1, 2×2 and 1×4)

Controller Chassis 4U 19” ANST/EIA RS-310C STANDARD INDUSTRIAL CHASSIS
Dimensions 482*380*175
Max Input Channel 24 HD or 4 channels of 4K caputure or 48 1080P IPs
Input Format DVI/HDMI/VGA, SDI, DP, SD, DL_DVI, HDbaseT, Fiber Optical, IP streaming
Max Output Channel 4 4K or 8 HD outputs
Output Format HDMI1.4 or DL-DVI
HDCP support Yes
Power Supply Single or RPSU
Input Voltage AC 110V To 240V, 50/60HZ
Operation System Windows2000/XP/Vista/7/8
Warranty 2 Years
Operating temperature range 0/40 degrees centigrade
Operating humidity range 10%~90% non-condensing
Storage temperature range 10~60 degrees centigrade
Storage humidity range 10%~90%
Control Interface RS232 OR ETHERNET PORT
Models Maximum HD Input Maximum 4K Output
SW-MV-UHD2 28 2
SW-MV-UHD4 24 4
Capture Card Type DVI HDMI VGA SDI
Format 4-channel 4-channel 4-channel 4-channel
Connector DVI-I HDMI A D-sub BNC
Signal Capture DVI/HDMI HDMI/DVI RGB/YPbPr 3G/HD/SD-SDI
Pixel Clock Rate 165MHz 165MHz 165MHz 165MHz
Maximum Resolution 1920*1200 1920*1200 1920*1200 720p/1080p
HDCP Compliant Yes Yes
Customised EDID Yes Yes Yes Yes
Output Card Type DVI HDMI 4K HDMI
Format 4-channel 4-channel 2-channel
Connector DVI-I HDMA A HDMA A
Pixel Clock Rate 165MHz 165MHz 330MHz
Maximum Resolution 1920*1200 1920*1200 3840*2400
HDCP Compliant Yes Yes Yes
